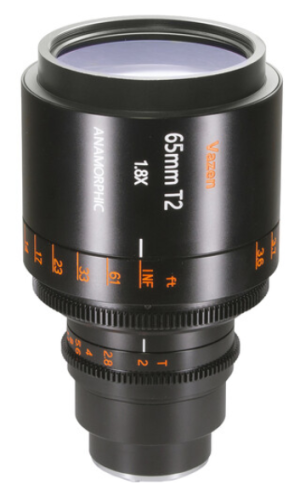

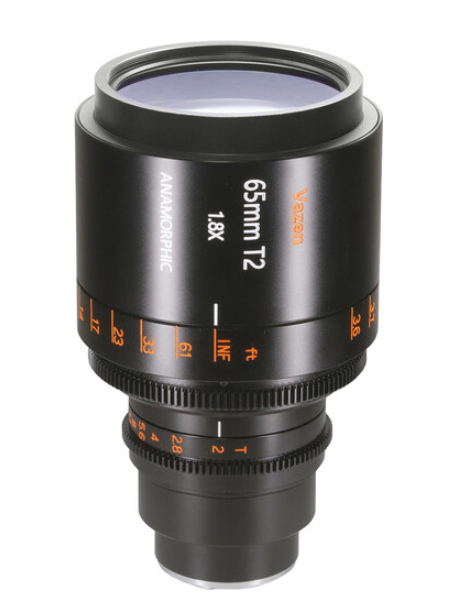

Vazen 1.8x Anamorphic 65mm T2
Summary
VZ (Vazen) 65mm t/2 Anamorphic Prime is the world’s first 1.8X anamorphic prime designed for Micro Four Thirds cameras and Canon RF mount cameras. Characterized by its front anamorphic design, the VZ Anamorphic prime delivers a buttery smooth oval bokeh, signature blue horizontal flare and the widescreen cinematic look.
The 1.8x squeeze produces a cinematic 2.39:1 aspect ratio to your image when capturing with 4:3 M43 sensors like Panasonic GH5 and Z-cam E2. It also supports the 4:3 1.8X anamorphic mode on Red Komodo. The lens features a fast t/2 aperture and 2.7” minimum focus distance, the focus breathing is also minimal .
Despite the rugged design, the VZ anamorphic prime is relatively compact and lightweight. It was designed with the finest mechanical functionality to allow cinematographers to film with ease. The 95mm front diameter allows usage with standard matte box and the independent aperture and focus rings are built with 0.8mod cine gears. The focus throw is 300°.
Tech Specs
| Manufacturer | Vazen |
| Series | Anamorphic |
| Model | - |
| Focal Length | 65mm |
| Max Aperture | T2 |
| Min Aperture | T16 |
| Format | MFT |
| Image Circle | ⌀ |
| Minimum Focus | 3.6ft |
| Focus Rotation | ° |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | 1.8x |
| Front Diameter | 95mm |
| Filter Thread | 86mm |
| Focus/Zoom Rod | - |
| Native Mount | MFT, RF |
| Data Protocol | - |
| Length | 7.28in |
| Weight | 1.68kg |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
