Vazen 1.8x Anamorphic 28mm T2.2
Summary

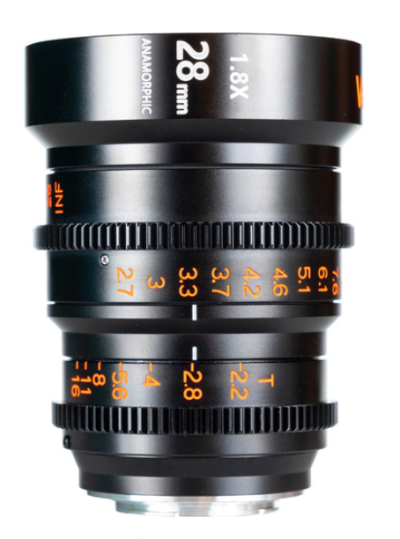

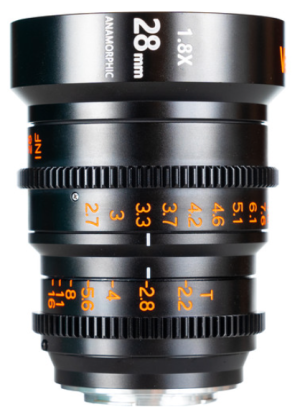

VZ (Vazen) 28mm t/2.2 Anamorphic Prime is specially designed for Micro Four Thirds cameras and Canon RF cameras. Characterized by its front anamorphic design, the VZ Anamorphic prime delivers a buttery smooth oval bokeh, signature blue horizontal flare and the widescreen cinematic look. The new 28mm has a compact design that it can easily be fitted onto a handheld gimbal.
The 1.8x squeeze produces a cinematic 2.39:1 aspect ratio to your image when capturing with 4:3 M43 sensors like Panasonic GH5 and Z-cam E2. It also works very well with the 4:3 1.8x anamorphic mode in Red Komodo. Mild vignetting will be visible in 6k mode. Fully clear at 4k mode. The lens features a fast t/2.2 aperture and 2.7” minimum focus distance, the focus breathing is also minimal . Mild vignetting will be visible in 6k mode.
Despite the rugged design, the VZ anamorphic prime is relatively compact and lightweight. It was designed with the finest mechanical functionality to allow cinematographers to film with ease. The 80mm front diameter and 77mm filter thread allow usage with standard matte box and screw in filters. Independent aperture and focus rings are built with 0.8mod cine gears. The focus throw is 300°.
Tech Specs
Manufacturer | Vazen |
Series | Anamorphic |
Model | - |
Focal Length | 28mm |
Max Aperture | T2.2 |
Min Aperture | T16 |
Format | MFT |
Image Circle | ⌀ |
Minimum Focus | 2.7ft |
Focus Rotation | ° |
Iris Blades | - |
Optical Design | - |
Squeeze | 1.8x |
Front Diameter | 80mm |
Filter Thread | 77mm |
Focus/Zoom Rod | - |
Native Mount | MFT, RF |
Data Protocol | - |
Length | 4.2in |
Weight | 0.72kg |
Body Telescope | - |
Body Material | - |
Focus Drive | - |
Iris Drive | - |
Zoom Drive | - |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
