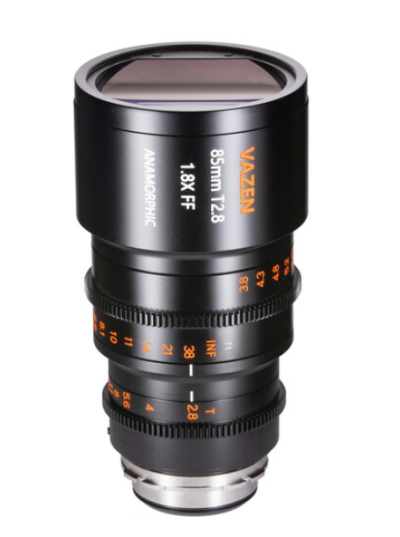

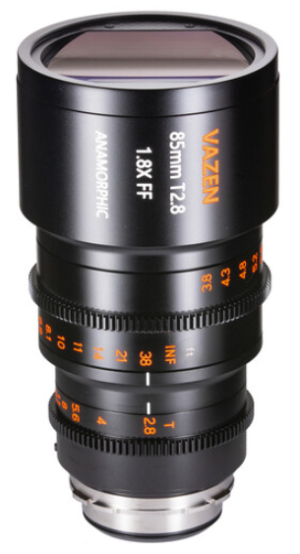

Vazen 1.8x Anamorphic 85mm T2.8

Summary

85mm T2.8 1.8x Anamorphic Lens is the new FF anamorphic lenses line-up brought to by Vazen. Covering Red Monstro and Alexa LF opengate, the new Vazen lens has one of the most compact anamorphic lens design and is one of the sharpest FF anamorphic lens in the market.

Tech Specs

Manufacturer Vazen
Series Anamorphic
Model -
Focal Length 85mm
Max Aperture T2.8
Min Aperture T22
Format Full Frame
Image Circle
Minimum Focus 3.8ft
Focus Rotation °
Iris Blades -
Optical Design -
Squeeze 1.8x
Front Diameter 95mm
Filter Thread 86mm
Focus/Zoom Rod -
Native Mount PL, EF
Data Protocol -
Length 6.89in
Weight 1.49kg
Body Telescope -
Body Material -
Focus Drive -
Iris Drive -
Zoom Drive -

History

Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:

Service

Notes

Media
