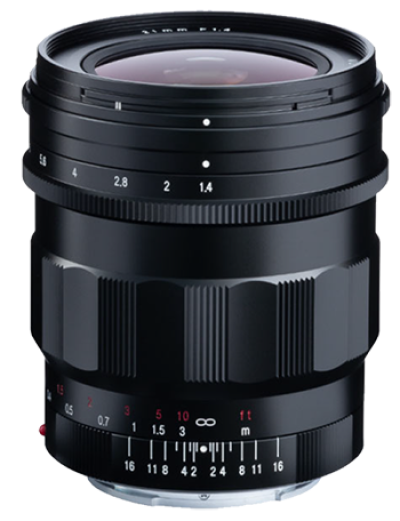

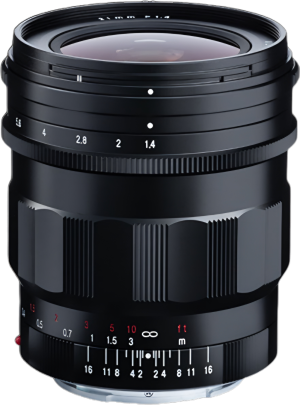

Voigtländer 21mm f/1.4 Nokton Aspherical

Summary

The NOKTON 21 mm F1.4 Aspherical E-mount is a large maximum aperture manual focus lens optimized for the imaging sensors of Sony mirrorless cameras. The 21mm focal length covers an angle of 91° which is about 10° wider than a 24/25 mm focal length to create a super dynamic perspective. Generally, the wider a lens gets the deeper the depth of focus of the lens, but with the NOKTON 21 mm F1.4 aspherical E-mount lens, the extremely large maximum aperture for a super wide-angle lens enables imaging that utilizes “bokeh” (out-of-focus blur). The minimum focusing distance of 25cm can be used to emphasize the thin depth of focus in the close range. The lens utilizes a floating mechanism to maintain excellent imaging quality throughout the focusing range from close distance to infinity. Furthermore, the lens features aspherical optics to eliminate distortion and chromatic aberrations in addition to enabling a compact optical design despite the large maximum aperture. The aperture ring has click stops in 1/3 steps. The lens also features a click stop switching mechanism that enables the click stops to be turned off when shooting video. The included petal Hood can be attached/removed easily for hassle-free filter work, and can be attached in reverse for easy storage.

Tech Specs

Manufacturer Voigtländer
Series Still lens
Model Nokton Aspherical
Focal Length 21mm
Max Aperture f/1.4
Min Aperture f/16
Format FF
Image Circle -
Minimum Focus 0.25m
Focus Rotation -
Iris Blades 12
Optical Design 13/11
Squeeze none
Front Diameter 70.5mm
Filter Thread 62mm
Focus/Zoom Rod -
Native Mount E
Data Protocol none
Length 79.5mm
Weight 560g
Body Telescope -
Body Material aluminum
Focus Drive manual
Iris Drive manual
Zoom Drive n/a

History

Country of Origin: Austria/Germany
Release Date: -
Launch Price: -
Design Revisions:
