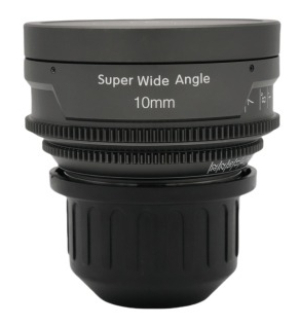

UCG Optics Super Wide Angle 10mm T3.1
Summary
The UCG Optics 10mm Super Wide Angle is rehoused from Laowa 10mm f/2.8 Zero-D FF lens. Transformed into robust housing crafted from hard anodized aluminum, it boasts a cinematic mechanism and LPL mount, rendering it an exclusive choice for cinematographers. Additionally, it claims the title of the world's first rectilinear lens with VistaVision, boasting a large aperture of T3.1, zero distortion, an ultra-wide view of 130.4°, 4-inch close focus, high resolution, and exceptional optical performance.
Tech Specs
| Manufacturer | UCG Optics |
| Series | Rehoused Prime |
| Model | Super Wide Angle |
| Focal Length | 10mm |
| Max Aperture | T3.1 |
| Min Aperture | T32 |
| Format | VV |
| Image Circle | - |
| Minimum Focus | 4in |
| Focus Rotation | 170° |
| Iris Blades | 14 |
| Optical Design | 15/9 |
| Squeeze | none |
| Front Diameter | 100mm |
| Filter Thread | - |
| Focus/Zoom Rod | none |
| Native Mount | LPL |
| Data Protocol | none |
| Length | 110mm |
| Weight | 700g |
| Body Telescope | none |
| Body Material | aluminum |
| Focus Drive | manual |
| Iris Drive | manual |
| Zoom Drive | none |
History
Country of Origin: China
Release Date:
Launch Price:
Design Revisions:
Service
Notes
