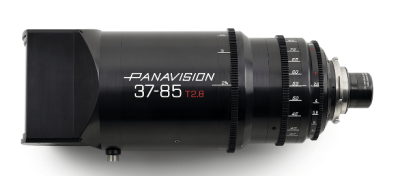

Panavision AWZ2.3 T Series 37-85mm T2.8
Summary
The AWZ2.3 is an evolution of Panavision’s AWZ 40-80mm zoom and complements Panavision’s T Series primes. The AWZ2.3 is optimized for electronic sensors (the zoom is not compatible with spinning-mirror cameras) while retaining desirable anamorphic flaring and breathing characteristics.
The optical layout adopts mechanical advances from the G Series and provides a large sweet spot of focus. Optical features include high contrast, well-balanced aberration control, excellent glare resistance, tightly controlled anamorphic squeeze ratio, and minimal breathing.
Tech Specs
| Manufacturer | Panavision |
| Series | Anamorphic Zoom |
| Model | AWZ2.3 |
| Focal Length | 37-85mm |
| Max Aperture | T2.8 |
| Min Aperture | - |
| Format | - |
| Image Circle | - |
| Minimum Focus | 33in |
| Focus Rotation | - |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | 2x |
| Front Diameter | 4.44in |
| Filter Thread | - |
| Focus/Zoom Rod | - |
| Native Mount | - |
| Data Protocol | - |
| Length | 12.8in |
| Weight | 14lbs |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date:
Launch Price:
Design Revisions:
Service
Notes
