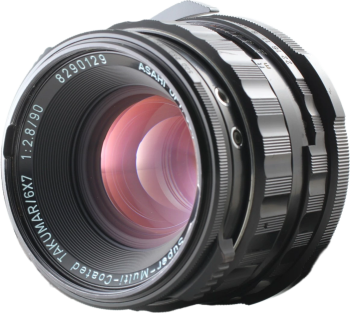

Pentax 67 SMC Takumar 90mm f/2.8
Summary
The SMC Pentax 67 / SMC Pentax-6×7 90mm f/2.8 is a medium-format standard prime lens introduced in 1980 for the Pentax 6×7 bayonet mount, later reissued in 1989 with updated cosmetics under the “Pentax 67” branding. Designed as a slightly wider alternative to the popular 105mm f/2.4, it offers a 53° diagonal field of view, making it a versatile everyday lens for landscapes, portraits, and travel. Optically, it features a 7-element, 5-group design with Super Multi-Coating (SMC) and an 8-blade automatic diaphragm, stopping down to f/22. It focuses as close as 65 cm, uses a 67 mm filter thread, and weighs 485 g, measuring 91.5 × 45 mm. The lens lacks internal focusing and an “A” setting, but includes a bayonet-style filter mount and supports clip-on hoods like the PH-SB67.
Came in two variants with similar specs:
SMC Pentax-6×7 90mm f/2.8 in 1980; SMC Pentax 67 90mm f/2.8 in 1989
Tech Specs
| Manufacturer | Pentax |
| Series | 67 |
| Model | SMC Takumar |
| Focal Length | 90mm |
| Max Aperture | f/2.8 |
| Min Aperture | f/22 |
| Format | 6×7 |
| Image Circle | - |
| Minimum Focus | 65cm |
| Focus Rotation | ° |
| Iris Blades | 8 |
| Optical Design | 7/5 |
| Squeeze | none |
| Front Diameter | 91.5mm |
| Filter Thread | 67mm |
| Focus/Zoom Rod | none |
| Native Mount | Pentax 6×7 |
| Data Protocol | none |
| Length | 45mm |
| Weight | 485g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date: 1980
Launch Price:
Design Revisions:
