Pentax 67 SMC Takumar 55mm f/4 Ver 1
Summary

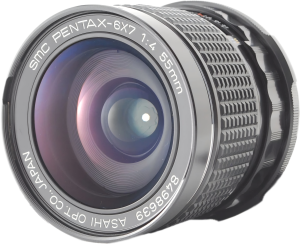

The SMC Pentax-6×7 55mm f/4 is a wide-angle prime introduced in 1979 for the Pentax 6×7 medium format system, offering a field of view equivalent to a 28mm lens on 35mm film. It replaced the earlier, heavier 55mm f/3.5 Takumar and was later succeeded by the optically refined SMC Pentax 67 55mm f/4 in 1986. This version is often referred to as the “second-generation” 55/4, and it strikes a balance between performance, size, and usability. The lens features a 9-element - 8-group optical design with Super Multi-Coating (SMC) and an 8-blade automatic diaphragm. It stops down to f/22, focuses as close as 40cm, and delivers 0.2× magnification—making it surprisingly capable for close-up work. It uses a 77mm filter thread, weighs 615g, and measures 91.5 × 75.5mm. It lacks internal focusing and weather sealing, but includes a manual aperture ring (no “A” setting), and supports both screw-in and bayonet filters. A dedicated PH-SA hood and S90-100 case were standard accessories.
Came in two variants with different specs. See other version.
Tech Specs
| Manufacturer | Pentax |
| Series | 67 |
| Model | SMC Takumar |
| Focal Length | 55mm |
| Max Aperture | f/4 Ver 1 |
| Min Aperture | f/22 |
| Format | 6×7 |
| Image Circle | - |
| Minimum Focus | 40cm |
| Focus Rotation | ° |
| Iris Blades | 8 |
| Optical Design | 9/8 |
| Squeeze | none |
| Front Diameter | 91.5mm |
| Filter Thread | 77mm |
| Focus/Zoom Rod | none |
| Native Mount | Pentax 6×7 |
| Data Protocol | none |
| Length | 75.5mm |
| Weight | 615g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date: 1979
Launch Price:
Design Revisions:
