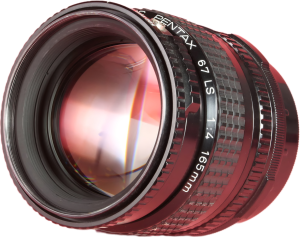

Pentax 67 SMC Takumar 165mm f/4 Leaf Shutter
Summary
Short tele for the Pentax 6×7 system with a leaf shutter built in. The leaf shutter permits flash photography at up to 1/500s synch speed. The leaf shutter can be disengaged so that the lens can be used as an ordinary lens.
Came in two variants with similar specs:
SMC Pentax-6×7 165mm f/4 LS in 1981; SMC Pentax 67 165mm f/4 LS in 1987
Tech Specs
| Manufacturer | Pentax |
| Series | 67 |
| Model | SMC Takumar |
| Focal Length | 165mm |
| Max Aperture | f/4 LS |
| Min Aperture | f/32 |
| Format | 6×7 |
| Image Circle | - |
| Minimum Focus | 160cm |
| Focus Rotation | ° |
| Iris Blades | 5 |
| Optical Design | 5/4 |
| Squeeze | none |
| Front Diameter | 92.5mm |
| Filter Thread | 77mm |
| Focus/Zoom Rod | none |
| Native Mount | Pentax 6×7 |
| Data Protocol | none |
| Length | 77mm |
| Weight | 780g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date: 1981
Launch Price:
Design Revisions:
Service
Cine-Mod
Notes
Media
