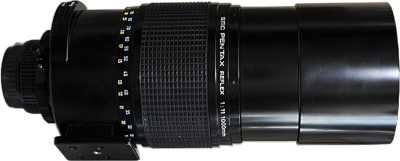

Pentax SMC Reflex 1000mm f/11
Summary
The SMC Pentax Reflex 1000mm F11 is much shorter than the 1000mm F8, as it employs mirror elements at the cost of slower and fixed aperture.
Tech Specs
| Manufacturer | Pentax |
| Series | K Series Reflex |
| Model | SMC |
| Focal Length | 1000mm |
| Max Aperture | f/11 |
| Min Aperture | f/11 |
| Format | Full-Frame |
| Image Circle | - |
| Minimum Focus | 800cm |
| Focus Rotation | ° |
| Iris Blades | 10 |
| Optical Design | 6/4 |
| Squeeze | none |
| Front Diameter | 119mm |
| Filter Thread | 52mm (rear) |
| Focus/Zoom Rod | none |
| Native Mount | Pentax K |
| Data Protocol | none |
| Length | 248mm |
| Weight | 2300g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin:
Release Date: 1977
Launch Price:
Design Revisions:
