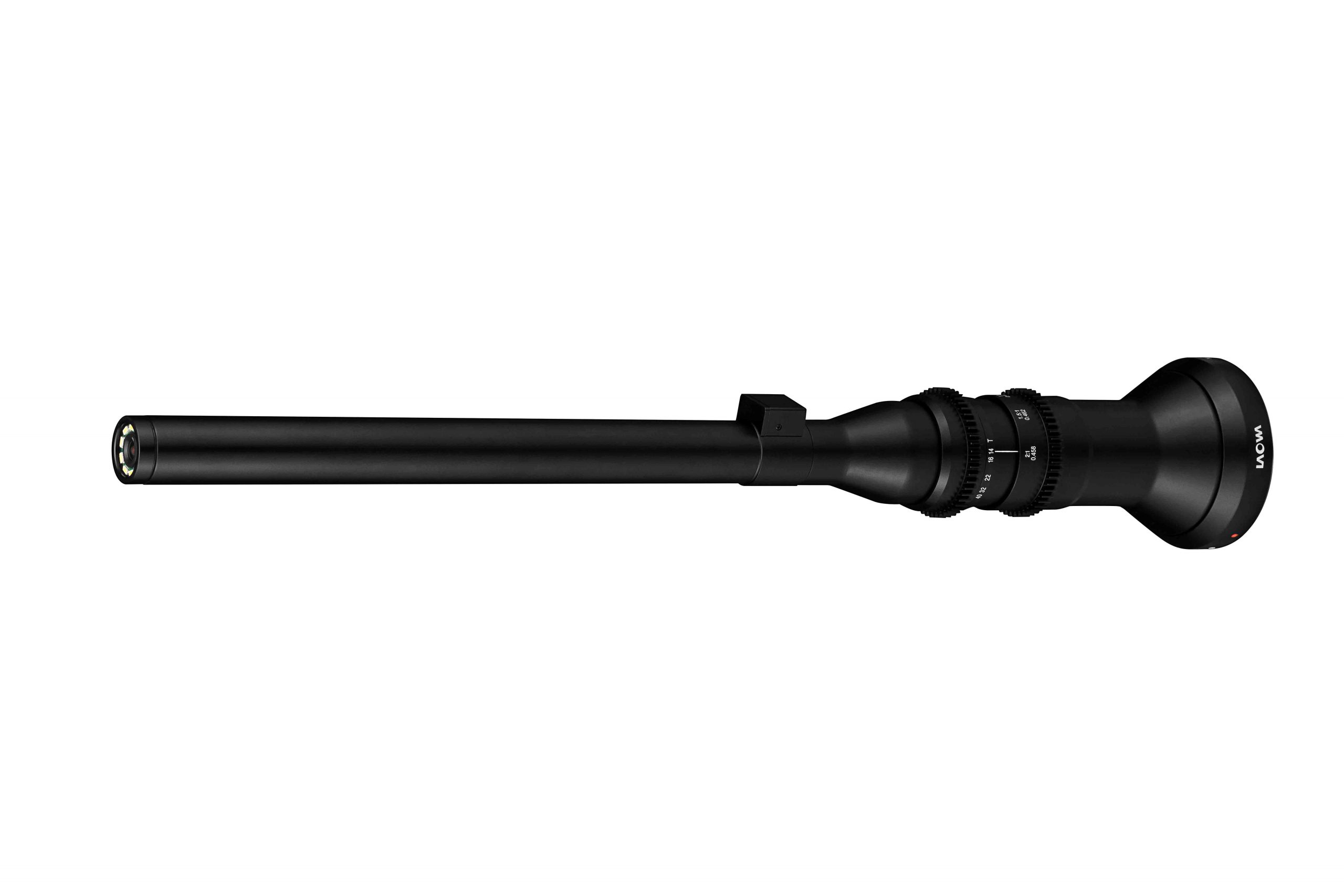

Laowa Probe 24mm T14
Summary
Previously funded in Kickstarter and ranked 2nd in the all-time most funded lens project, this is the world’s first consumer-grade probe lens which focuses from 2:1 macro to infinity and with a compelling wide angle ‘Bug Eye’ perspective. The wide angle design means much greater depth of field at close distances than possible with conventional telephoto macro lens, so more background details can now be seen. The front barrel of the lens is waterproof and an LED ring light is mounted at the tip of the lens. It can cover both standard 35mm full frame & Super35 image sensors and is super lightweight to carry.

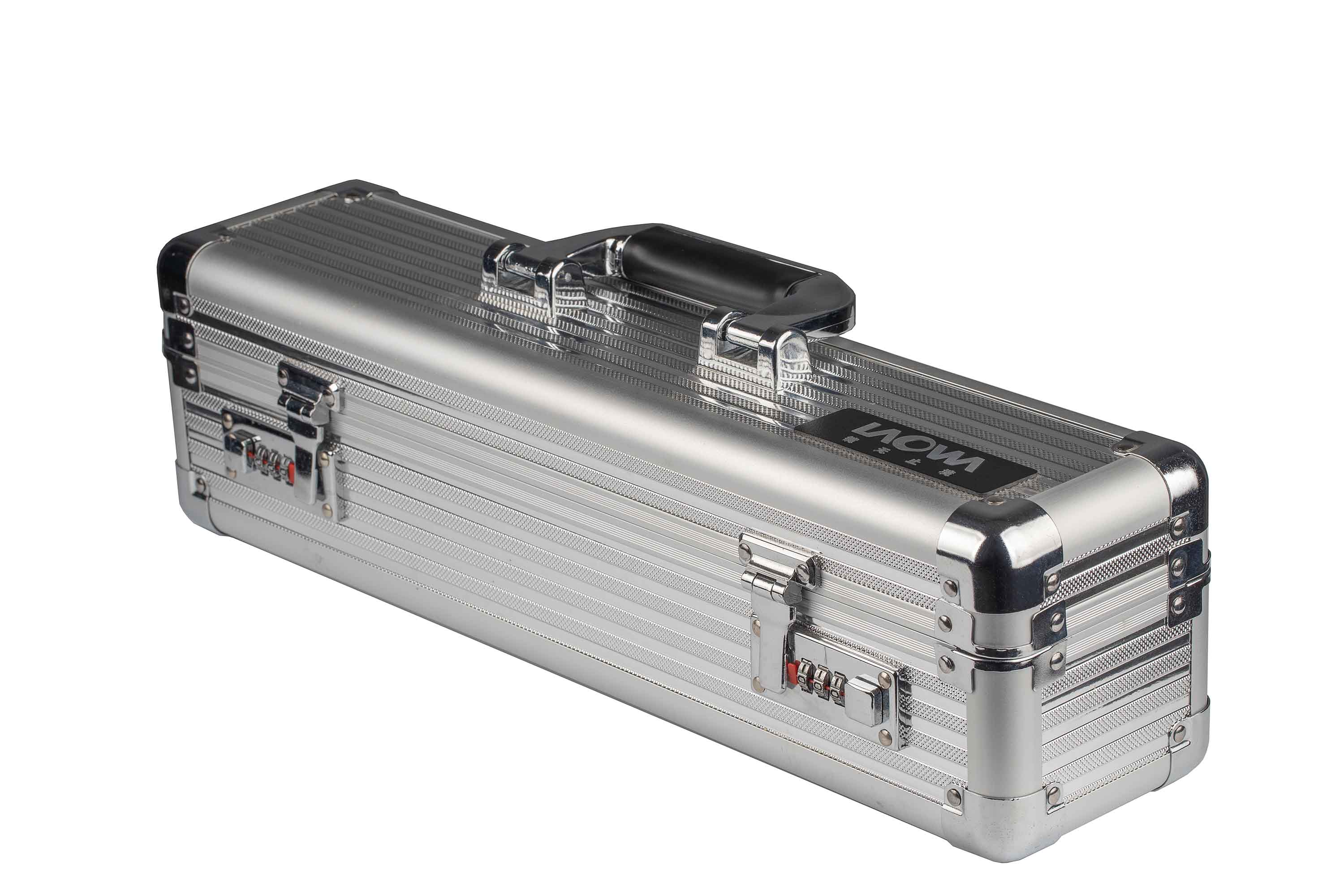

Canon EF, Nikon F, Sony FE, Pentax K, Arri PL mounts are available. “Cine-mod” version, with standard gear focus and aperture rings, is specifically designed for videography purposes. Includes variable-output Control cable and rugged aluminum carry case. The retail package includes a white USB cable dimmer (with power adjustment), a black USB cable (no power adjustment) and metal case. Please note that the LED is powered by an external battery (not included in the package).
Tech Specs
Manufacturer | Laowa |
Series | Probe |
Model | |
Focal Length | 24mm |
Max Aperture | T14 |
Min Aperture | T40 |
Format | Full Frame |
Image Circle | |
Minimum Focus | 18 in. |
Focus Rotation | |
Iris Blades | 7 |
Optical Design | 27/19 |
Squeeze | none |
Front Diameter | n/a |
Filter Thread | n/a |
Focus/Zoom Rod | |
Native Mount | PL, EF, E |
Data Protocol | none |
Length | 16 in. |
Weight | 474g |
Body Telescope | none |
Body Material | Aluminum |
Focus Drive | Manual |
Iris Drive | Manual |
Zoom Drive | n/a |
History
Country of Origin: China
Release Date: 2018
Launch Price: $1,599
Design Revisions:
Aditional features were added to subsequent product releases. See entries for the PeriProbe and Pro2be.
