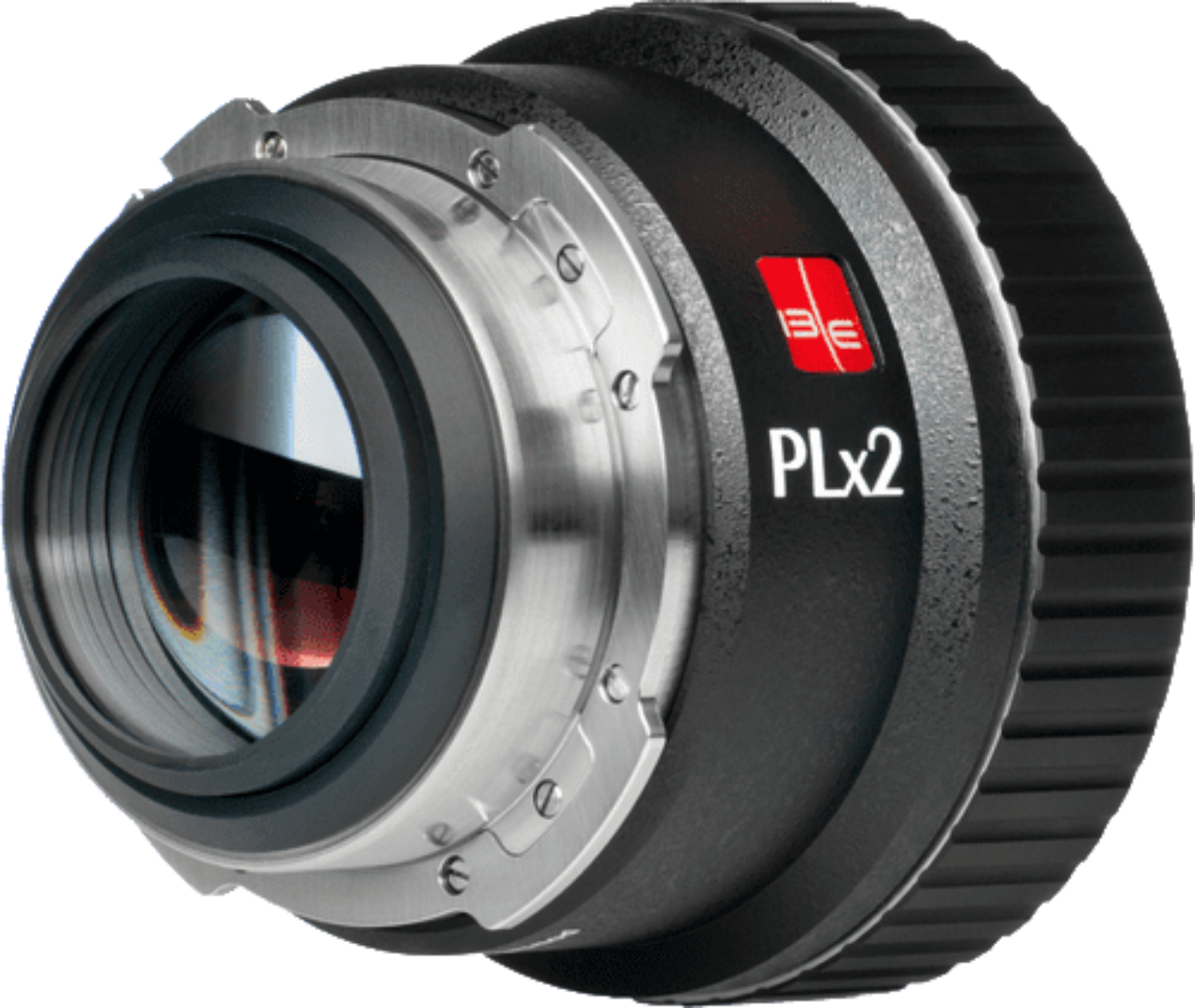

IB/E PLx2 Extender
Summary
While most extenders can only physically fit on a limited range of lenses, the design of the PLx2 accommodates more spherical and anamorphic PL mount lenses than any other doubler on the market. This is achieved by designing the extender with a deep-set optical assembly, thus, making it possible to use lenses with long protruding rear elements. The PLx2 will mount perfectly to any digital camera with a native PL mount. It will also clear the spinning mirror on ARRI and Aaton 35mm cameras. Optically, the PLx2 projects an image circle large enough to cover all commonly used 35 mm formats including 5K on RED Epic and 4:3 full frame on ARRI Alexa.
- Maximum image diameter: 34.5mm
- Maximum input T-stop: 1.9
Tech Specs
| Manufacturer | IB/E |
| Series | Extender |
| Model | PLx2 |
| Optical Design | 7/5 |
| Lens Mount | PL |
| Camera Mount | PL |
| Data Protocol | n/a |
| Light Loss | 2 stops |
| Mag./Ext./Sqz. | 2x |
| Weight | 0.55kg |
| Body Material | aluminum |
| Mount Material | stainless steel |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
