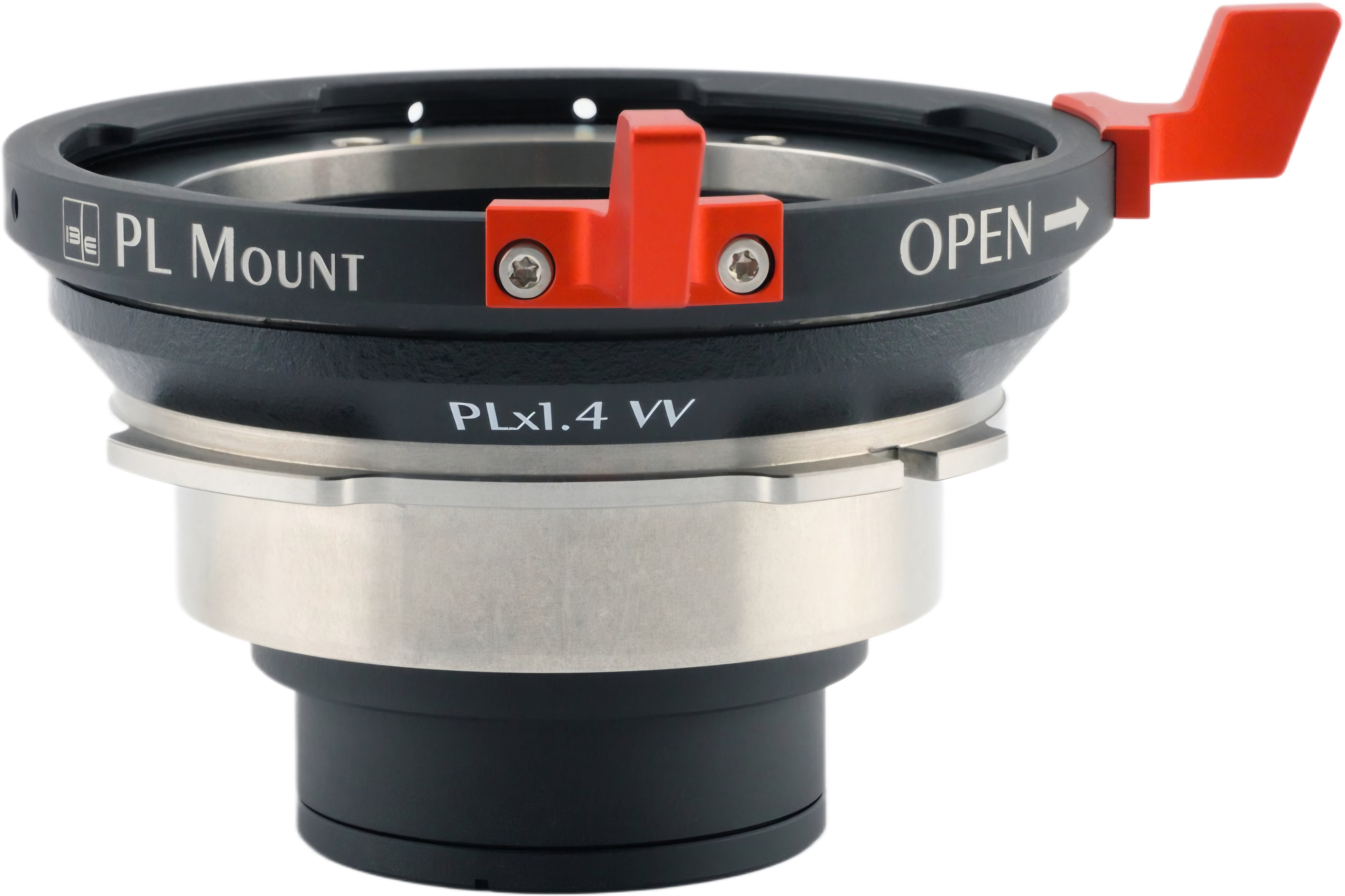

IB/E PLx1.4VV Expander
Summary
The PLx1.4VV optical expander increases the focal length and the projected image diameter of the lens by a factor of 1.4x. Then, it allows the use of the lens on large sensor cameras up to 47mm. This optical adapter features high-index, low-dispersion glass to ensure the highest possible resolution and contrast with minimal optical degradation.
- 47mm image diameter (VistaVision)
- High-index, low-dispersion glass
- Low light-loss
- Robust MechanicalDesign
- Extended Color Correction(APO)
- Small & lightweight
Tech Specs
| Manufacturer | IB/E |
| Series | Expander |
| Model | PLx1.4VV |
| Optical Design | - |
| Lens Mount | PL |
| Camera Mount | PL |
| Data Protocol | n/a |
| Light Loss | 1 stop |
| Mag./Ext./Sqz. | 1.4x |
| Weight | 0.5kg |
| Body Material | aluminum |
| Mount Material | stainless steel |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
Service
Notes
Media
