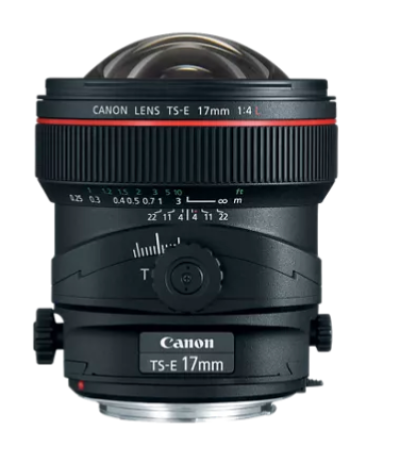

Canon TS-E 17mm f/4 L
Summary
The widest tilt-shift lens in Canon's lineup, the new TS-E 17mm f/4L lens expands shooting possibilities exponentially on EOS Digital cameras. Designed with UD glass to minimize and compensate for chromatic aberrations, with a specially coated aspherical element for the highest possible glare-free image quality, this tilt-shift lens offers a diagonal angle of view of 104° on a full-frame SLR camera. New TS rotation lets users freely combine tilting and shifting within the range of +/- 90° in the direction of movement. The lens also has an improved tilt & shift knob with an enhanced range of movement of up to +/- 6.5° and 12mm respectively, with a revolving function for better operability. It uses a circular aperture for beautiful out-of-focus areas and has an SWC lens coating to control ghosting and flare to a far greater degree than with earlier coating technologies.
Tech Specs
| Manufacturer | Canon |
| Series | TS-E |
| Model | L Tiltshift |
| Focal Length | 17mm |
| Max Aperture | f/4 |
| Min Aperture | f/22 |
| Format | FF |
| Image Circle | ⌀67.2mm |
| Minimum Focus | 0.82ft |
| Focus Rotation | ° |
| Iris Blades | 8 |
| Optical Design | 18/12 |
| Squeeze | - |
| Front Diameter | - |
| Filter Thread | - |
| Focus/Zoom Rod | - |
| Native Mount | EF |
| Data Protocol | - |
| Length | 4.2in |
| Weight | 820g |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | - |
| Iris Drive | - |
| Zoom Drive | - |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
