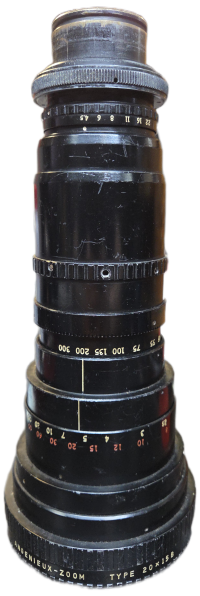

Angénieux Type 20x15B 15-300mm f/4.5
Summary
Tech Specs
| Manufacturer | Angénieux |
| Series | Zoom |
| Model | Type 20x15B |
| Focal Length | 15-300mm |
| Max Aperture | f/4.5 |
| Min Aperture | f/22 |
| Format | 16f |
| Image Circle | - |
| Minimum Focus | 5ft |
| Focus Rotation | ° |
| Iris Blades | 12 |
| Optical Design | - |
| Squeeze | none |
| Front Diameter | 99mm |
| Filter Thread | 95mm |
| Focus/Zoom Rod | zoom |
| Native Mount | - |
| Data Protocol | none |
| Length | - |
| Weight | - |
| Body Telescope | yes |
| Body Material | aluminum |
| Focus Drive | manual |
| Iris Drive | manual |
| Zoom Drive | manual |
History
Country of Origin:
Release Date:
Launch Price:
Design Revisions:
Service
Notes

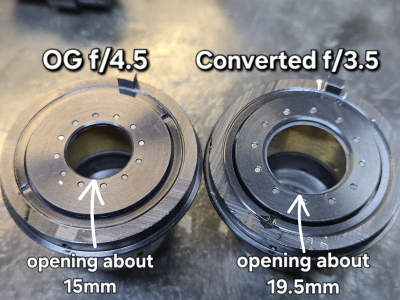

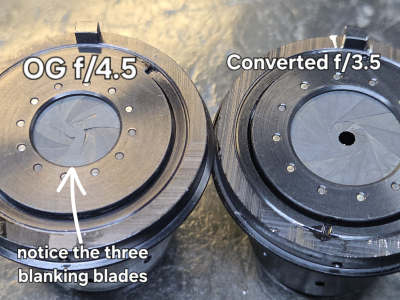

There is a conversion process from an f/4.5 to an f/3.5, which may be debatable since it only appears the aperture is swapped out, even though the smaller aperture still does not cover the glass.
