lens:angenieuxtype-ez215-40mmt2
Table of Contents

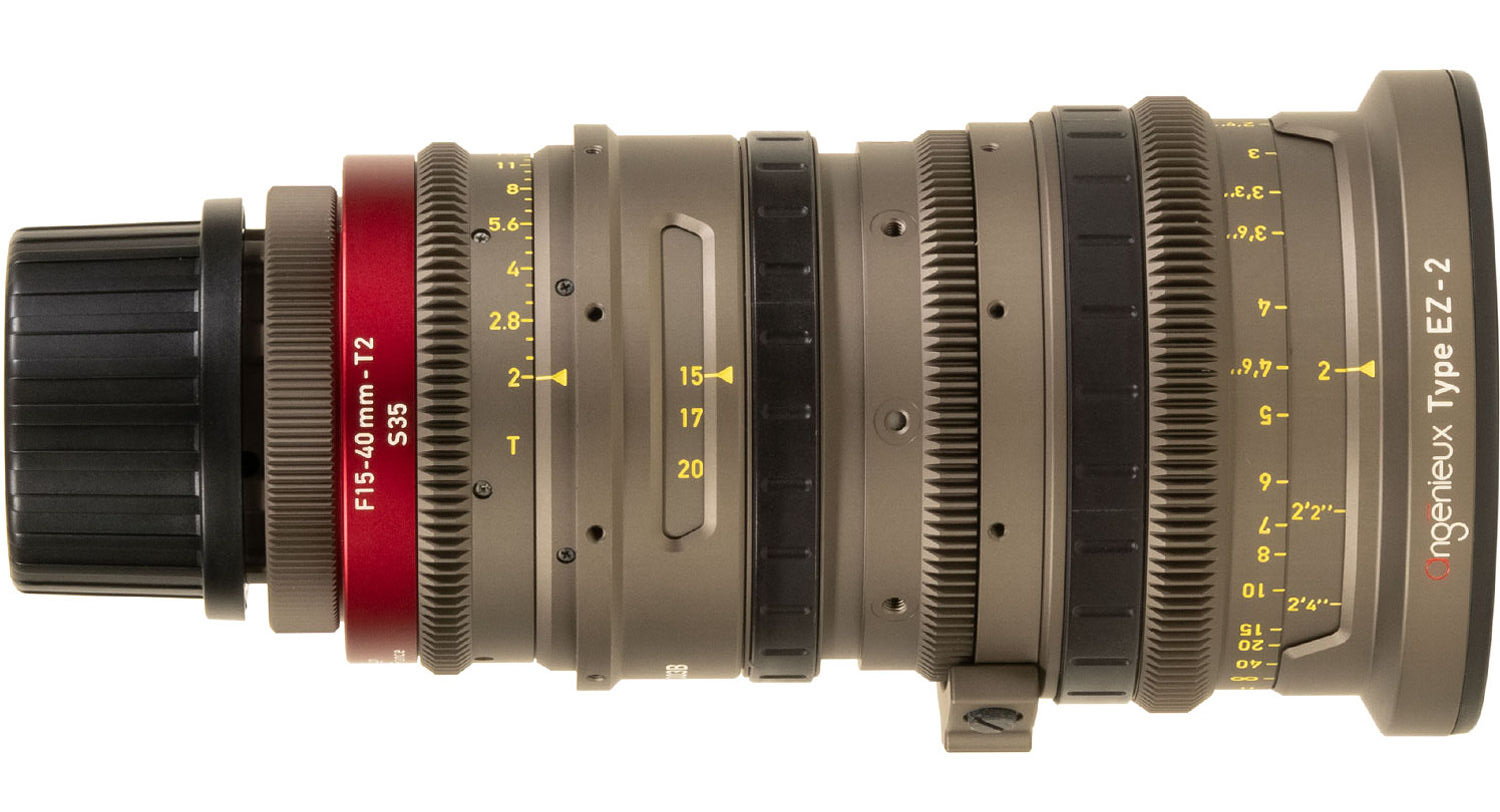

Angénieux Type EZ-2 15-40mm T2
Summary
The Super 35 15-40mm T2 becomes a Full Frame 22-60mm T3 by swapping the rear optical block and iris scale and putting the convertible zoom scale in the appropriate position.
The Angénieux Type EZ-2 for FF/VistaVision and S35 format is a wide zoom lens with a zoom factor of 2.7x. Its focal range and aperture are set to 22-60mm F2.8/T3 for the FF/VV covering an image up to 46 mm and 15-40mm F1.9/T2 for the S35 covering an image up to 30mm. By exchanging the rear lens group, the lens can be switched from FF/VV to S35 and from S35 to FF/VV.
Tech Specs
| Manufacturer | Angénieux |
| Series | Type |
| Model | EZ-2 |
| Focal Length | 15-40mm |
| Zoom Ratio | 2.7x |
| Max Aperture | T2 |
| Min Aperture | T32 |
| Format | Super 35 |
| Image Circle | 30mm |
| Minimum Focus | 2 ft. |
| Focus Rotation | - |
| Iris Blades | 9 |
| Optical Design | - |
| Squeeze | none |
| Front Diameter | 114mm |
| Filter Thread | 110mm |
| Native Mount | PL/EF/E |
| Data Protocol | none |
| Length | 8.9 in. |
| Weight | 2132 g |
| Body Telescope | none |
| Body Material | Aluminum |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | Manual |
History
Country of Origin: Japan
Release Date: 2017
Launch Price: $10,185 (S35 only)
Design Revisions:
Service
Notes
Media
