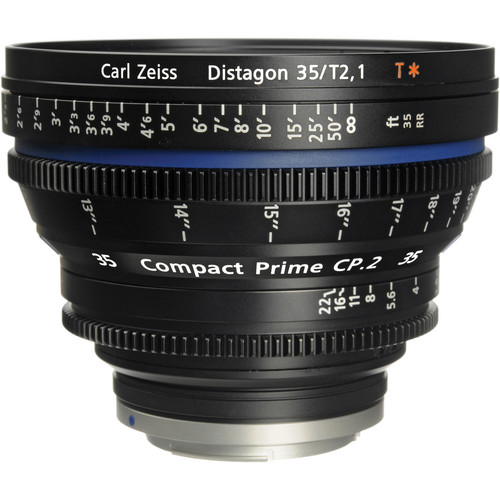

ZEISS CP.2 35mm T2.1

Summary

The ZEISS CP.2 are the successor to the original Compact Prime line of cine lenses; some people refer to the original as the CP.1, but this is inaccurate since ZEISS only used the CP.2 name after updating the original Compact Prime line. The optics remained the same from the original Compact Prime to the CP.2 with one main exception; the T1.5 models in the Compact Prime line were limited to T2.1 to offer a wider range of match T-stops throughout the CP.2 line. This included the 50mm and 85mm which were eventually re-released as “CP.2 Super Speeds” with their full T1.5 aperture. The other primary difference was in the mechanical design. The Compact Primes lacked an interchangeable mount system. The CP.2 introduced ZEISS' IMS system which included interchangeable mounts for the CP.2 primes including PL, EF, F, E, and MFT. A limited range of focal lengths were released in the CP.2 line. Focal lengths such as the 15mm and 135mm were added later on as they became available. Both the original Compact Primes, the CP.2, and CP.2 Super Speeds inherit their optical design from the ZEISS still-photo lenses; ZF, ZF.2, ZE, etc. The physical dimensions and operational layout of the ZEISS Compact Primes set the trend for Full Frame cinema prime lenses inspiring several other product lines from rival lens manufacturers. Eventually the CP.2 primes were succeeded by the CP.3 primes which were very similar conceptually.

Tech Specs

Manufacturer ZEISS
Series CP.2
Model
Focal Length 35mm
Max Aperture T2.1
Min Aperture T22
Format Full Frame
Image Circle 46.3mm
Minimum Focus 11.8 in.
Focus Rotation 300
Iris Blades 14
Optical Design 9 / 7
Squeeze none
Front Diameter 114mm
Filter Thread none
Focus/Zoom Rod none
Native Mount PL, EF, F, MFT, E
Data Protocol none
Length 3.1 in.
Weight 1000 g
Body Telescope none
Body Material Aluminum
Focus Drive Manual
Iris Drive Manual
Zoom Drive n/a

History

Country of Origin: Final assembly: Germany (optics: Japan)
Release Date:
Launch Price:
Design Revisions: Originally released as Compact Primes, updated to CP.2 and CP.2 Super Speeds. See notes above.

Service

This section restricted to Duclos Staff users.

Service Notes: Disassembly/Re-assembly
ZEISS element compatibility: FE/RE Compatibility

Service Manual:
(Google Drive) ZEISS CP.2 Parts Price List - 2023
(Google Drive) ZEISS CP.2 IMS Parts Price List - 2018
(PDF) ZEISS CP.2 Interchangeable Mount Instructions - 2014

Full CLA: 5 hrs.
Can accept front and rear elements for ZF.2/ZE primes.
Always include one front and one rear teflon washer when quoting a full CLA in case they are damaged or squished which will affect the feel of the focus before and/or after. teflon washers are in QB and generally in stock always.

Jammed focus: 4 hrs.
Replace complete focus assembly. Fixing/correcting jammed focus not worth time/effort.
Realign optics: 1 hrs.
Add notes here.
…end of Staff section

Notes

Media

ZEISS Compact Prime CP.2 Brochure - 2011)
(PDF) ZEISS CP.2 Interchangeable Mount Instructions - 2014
