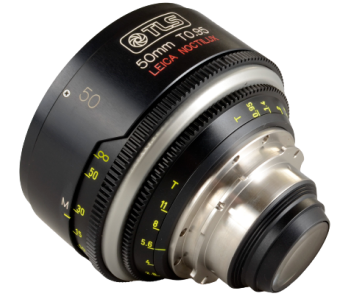

TLS Leica Noctilux 50mm T0.95
Summary
Tech Specs
| Manufacturer | TLS |
| Series | Leica |
| Model | Noctilux |
| Focal Length | 50mm |
| Max Aperture | T0.95 |
| Min Aperture | - |
| Format | - |
| Image Circle | - |
| Minimum Focus | 2ft 4in |
| Focus Rotation | - |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | - |
| Front Diameter | 110mm |
| Filter Thread | - |
| Focus/Zoom Rod | - |
| Native Mount | PL |
| Data Protocol | - |
| Length | 78.5mm |
| Weight | 1375g |
| Body Telescope | - |
| Body Material | Aluminum |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | n/a |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
Service
This section restricted to Duclos Staff users.
Known Issues:
1. if optical core is loose in housing or collimation changes (may require tapping lens alternately on the front and rear to see the change while evaluating) most likely the cam follower assembly (2 pieces: brass block and follower) are loose, bent or damaged. Quote replacements initially and remove from estimate if not needed after opening the lens.
Service Manual: (Insert link to manual here)
Full CLA: #hrs.
Enter relevant notes here
re-center optics: 1 hr
Once the mount has been removed you can see bare aluminum where the lens head has been modified , the rear screws are M2 x 2lg and can be adjusted
…end of Staff section
Cine-Mod
This section restricted to Duclos Staff users.
Focus Ring O.D.: -
Zoom Ring O.D.: -
Iris Ring O.D.: -
De-click Y/N: -
Additional Notes:
…end of Staff section
