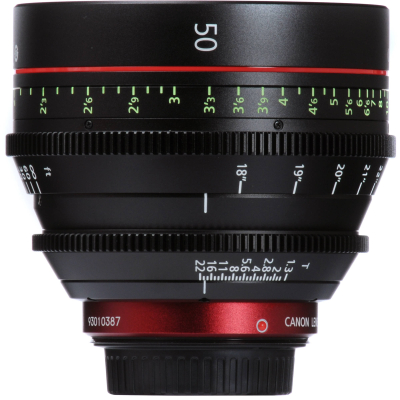

Canon CN-E 50mm T1.3
Summary
The Canon CN-E line of primes lenses was first introduced as part of their Cinema EOS product line in 2012, initially with the 14mm, 24mm, 50mm, 85mm, and 135mm with the 20mm and 35mm being added later on. The CN-E primes are fixed focal length lenses that inherit their optical design from the popular L series still-photo prime lenses from Canon. The CN-E primes are only available natively in Canon EF mount but can be converted by Duclos Lenses in Los Angeles, CA.
Tech Specs
| Manufacturer | Canon |
| Series | CN-E |
| Model | - |
| Focal Length | 50mm |
| Max Aperture | T1.3 |
| Min Aperture | T22 |
| Format | Full Frame |
| Image Circle | 43.3mm |
| Minimum Focus | 18 in. |
| Focus Rotation | 300 |
| Iris Blades | 11 |
| Optical Design | - |
| Squeeze | none |
| Front Diameter | 114mm |
| Filter Thread | 105mm |
| Native Mount | EF (see notes) |
| Data Protocol | Canon Eos |
| Length | 4.6 in. |
| Weight | 1089g |
| Body Telescope | none |
| Body Material | Aluminum |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | - |
History
Country of Origin: Japan
Release Date: 2012
Launch Price: $3,950
Design Revisions:
Service
This section restricted to Duclos Staff users.
Service Manual: Disassembly/Re-assembly
Full CLA: 6-7 hrs.
Enter relevant notes here
Minor adjustments: 2-3 hrs.
Enter relevant notes here.
Focus end-play: 5-6 hrs.
Wave washer for focus cam may be loose. Adding a Teflon washer should take up the play. This procedure requires nearly a full tear-down to complete.
PL Mount Conversion available exclusively from Duclos Lenses. https://www.ducloslenses.com/pages/cne-pl
RUSH Fee: add 25% of 6 hours to total for expedited installation
See Dis-assmebly guide for specific clearance tests
…end of Staff section
Notes
PL Mount Conversion available exclusively from Duclos Lenses. https://www.ducloslenses.com/pages/cne-pl
